Illustration

The illustrations and graphics in Spectrum 2 have been completely reworked to reflect the significant update of our design system.

Fundamentals

Spectrum 2 (S2) evolved around the need to bridge the gap between purely professional tools and more consumer-orientated applications, creating updates that prioritize more approachability, a clearer sense of attention hierarchy, and a stronger connection to product branding. Illustrations are a major part of how Spectrum 2 creates such experiences.

Photoshop web interface with options to upload images, quick actions, start from scratch, and tutorials. Blue header highlights AI tools.

The S2 illustration styles reflect these ideas by introducing both clear, friendly UI illustrations and expressive brand illustrations with colors that are closely connected to Adobe’s product categories. Updated shapes and forms make clearer connections to Spectrum 2 iconography. The styles work as a dynamic, flexible, and robust system that supports foundational attention hierarchy principles through a range of options. They work across UI illustrations, empty states, cards, banners, and more. These illustrations were also developed with product implementation as top-of-mind, and have been intentionally created to support export as SVG native files — making the assets lean and easy to implement across many frameworks.

With S2, we’re also introducing a new style of illustrations: gradient illustrations. The gradient swatches are a combination of the product-specific brand colors within the S2 color system and a set of shapes that connect to the Spectrum 2 principles: rational, human, focused, and collaborative. Together, this brings a dynamic sense of a product’s brand presence directly into the user experience. Gradient illustrations are engaging and positive, and add moments of delight. They can draw attention to specific areas (such as a drop zone or an empty state), and can encourage users to take a specific, intended action, like beginning a project or uploading files. They can also be applied to cards, banners, and backgrounds.

Please note that parts of this illustration system are still in exploration, and will be added to these guidelines once they’re more defined. Animation is also currently being explored.

Grid of app icons and colorful symbols, including bells, confetti, chat bubbles, lightbulbs, and clouds, in varied sizes and styles.

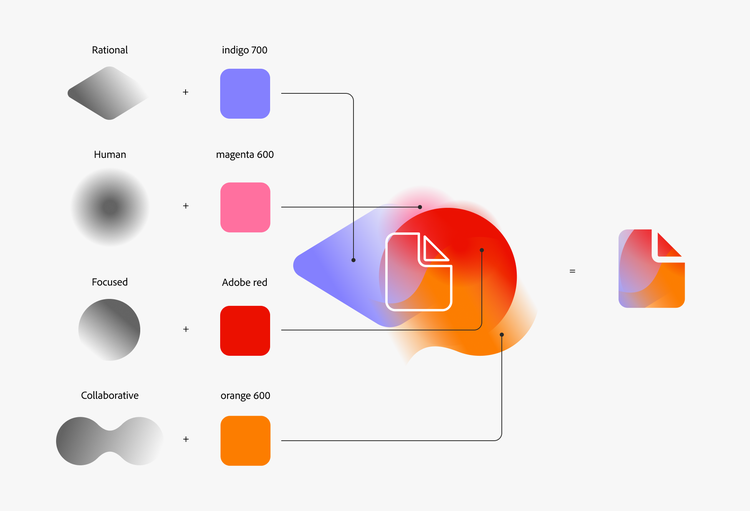

Diagram that shows the four forms by which the gradient fills are created, mapped to the four Spectrum principles. The diamond shape from the Spectrum logo stands for Rational. A radial gradient stands for Human. A circle with a linear gradient fill with sharper edges stands for Focused. A shape of two connected circles stands for Collaborative. These shapes are then combined with colors from the Spectrum 2 color system. The colors are arranged to overlap, to make the gradients flow into each other. An example of a final illustration using this method that brings everything together.

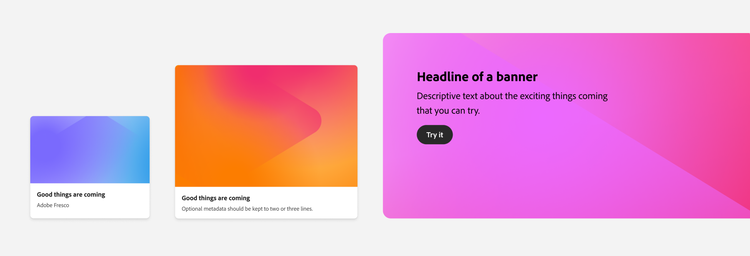

Examples of components that use gradient fills. A smaller card, a medium sized card, and a large banner, all with sample text.

Comparing Spectrum 1 and Spectrum 2

Here’s a summary of the main updates that you’ll notice with Spectrum 2 illustrations, compared to the style of Spectrum 1:

  • Similar to icons and text, all linear illustrations now use Spectrum gray 800 instead of gray 500. This meets accessibility standards by ensuring visibility regardless of the background color.
  • These illustrations have a much closer connection to the icon metaphors and forms, for a consistent and cohesive visual language.
  • Linear illustrations feature rounder and friendlier forms, making them feel more approachable. The compositions are also less cluttered and more clear, to promote focus and scaleability.
  • The S2 illustrations come in three sizes: S (48×48 px), M (96×96 px), and L (160×160 px). These sizes are in line with the spacing tokens, and provide more flexibility for layouts.
  • With the introduction of gradient illustrations, there's now an option for illustrations with more color. Color creates more expressiveness and brand integration, as well as supports multiple levels of attention hierarchy.

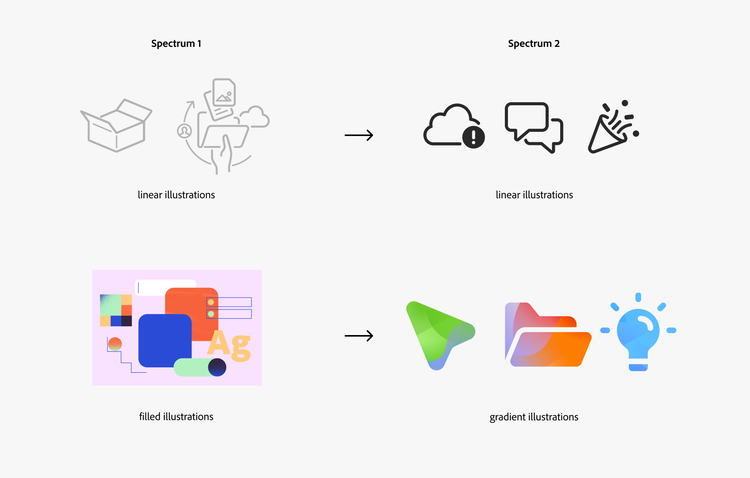

A diagram showing a comparison of the illustration styles in Spectrum 1 to Spectrum 2. Linear illustrations have been updated, evolved from the Spectrum 1 outline style. Gradient illustrations replace the Spectrum 1 filled illustration style.

Illustration styles

Spectrum 2 illustrations have two styles: linear (monochromatic) and gradient (color). Both have specific use cases.

If you’re not sure about which style is appropriate for your use case, please reach out to the Spectrum Brand team for support. Do not create your own illustrations, or use 3rd-party assets. Illustrations are very visible parts of our design system that drive the consistent look and feel to our products, so they need to be used strategically and thoughtfully.

Linear illustrations

The Spectrum 2 linear illustrations are an evolution of the Spectrum 1 outline style. The Spectrum 2 icons serve as the blueprint; they follow the same metaphors and are drawn in a similar way.

Linear illustrations are monochromatic. They use the same color token as the icons (S2 / gray 800), and switch colors according to dark and light UI.

Five examples of different Spectrum 2 linear illustrations in the three sizes, large, medium, and small. A notifications bell, a celebratory confetti popper, a comment bubble, a lit light bulb, and a cloud.

Linear illustrations

The Spectrum 2 linear illustrations are an evolution of the Spectrum 1 outline style. The Spectrum 2 icons serve as the blueprint; they follow the same metaphors and are drawn in a similar way.

Linear illustrations are monochromatic. They use the same color token as the icons (S2 / gray 800), and switch colors according to dark and light UI.

Sizes

Linear illustrations come in three sizes: small (48×48 px), medium (96×96 px), and large (160×160 px). Small and medium are the most commonly used sizes; large is not used as often. For most use cases, the medium size works well across mobile, tablet, and desktop.

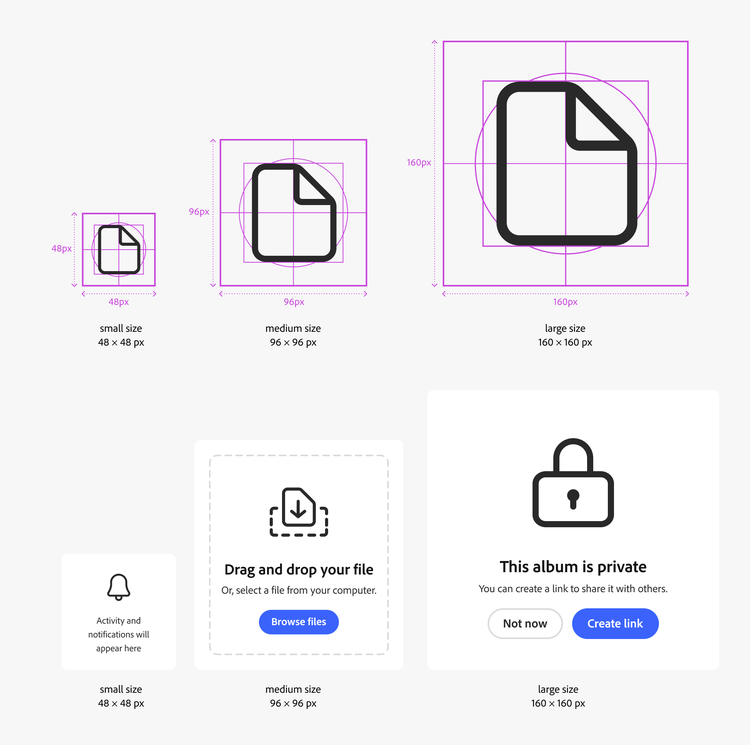

Comparison of the three different sizes of the linear illustrations, and examples of those same sizes in different components: empty states and a drag and drop state.

Color

The linear illustrations use Spectrum gray 800, and switch between light and dark UI. For production, the SVGs in the A4U libraries use embedded tokens, similar to the structure of the icons. This ensures that they can programmatically switch depending on UI brightness or color theme.

The components in the Figma library use the S2 / Variables tokens.

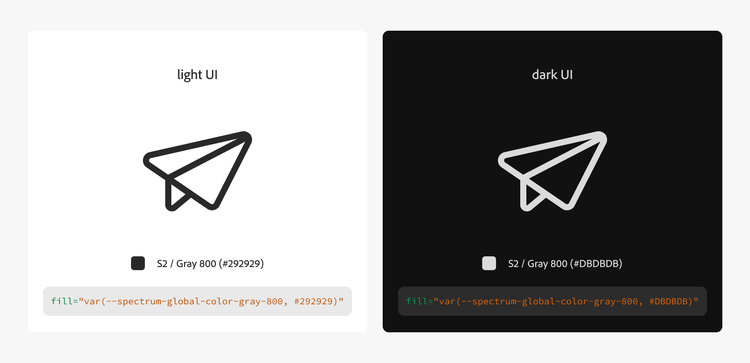

Example of the same linear illustration in light and dark UI, showing the color values and a snippet of the code block in the SVG asset that controls the fill color. In light UI, a paper airplane illustration uses the token Gray 800, hex 292929. In dark UI, it uses Gray 800, hex DBDBDB.

Naming convention

Linear illustrations use the following naming convention:

  • Prefix identifies it as part of a larger group of assets: in this case, S2 (Spectrum 2).
  • Type is the type of the asset: lin for linear illustration.
  • Illustration name is in camel case, and there are no empty spaces or individual characters allowed.
  • Illustration size is stated in pixels at @1x.
  • Filetype suffix indicates the asset format, like SVG or PNG.

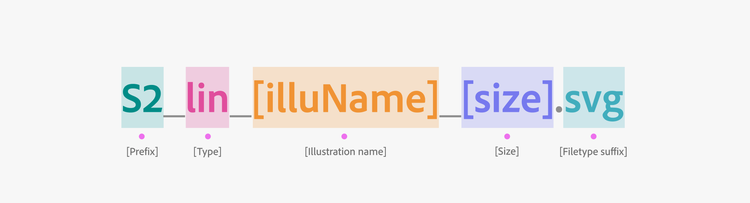

A breakdown of the correct linear illustration naming convention: prefix, type, illustration name, size, and filetype suffix.

Use cases

Linear illustrations are straightforward and clear UI illustrations for a variety of use cases, such as empty states or error messages. They support calls to action — like a drop zone illustration, or an empty state illustration — that explain the next steps for how to use the interface in order to get started or move forward. A good example of a use case for a linear illustration is with the illustrated message component.

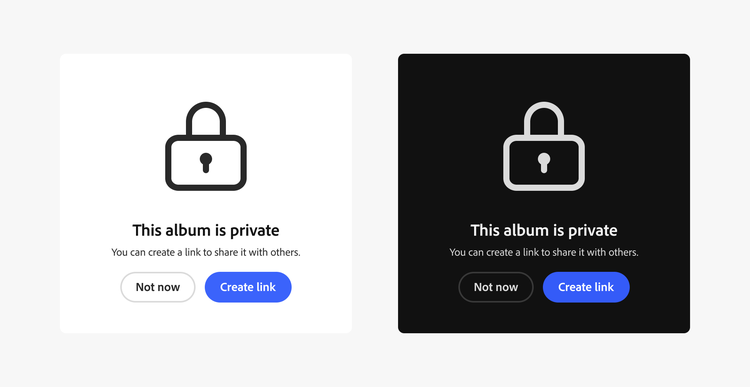

Example of a linear illustration used in the illustrated message component, in both light and dark UI. A lock illustration, with text This album is private. You can create a link to share it with others. Two buttons, main action Create link, secondary action Not now.

Gradient illustrations

Gradient illustrations are new to our design system with the update to Spectrum 2. Compared to linear illustrations, they’re much bolder. They can help users understand a message more quickly, or motivate them to perform a specific action.

Gradient illustrations also introduce color, which makes them more expressive, reinforces product branding, and supports attention hierarchy. They use distinct pairings of colors and shapes that are tied to the product brand categories and the Spectrum 2 principles.

This style replaces the Spectrum 1 filled illustration style.

Five examples of different Spectrum 2 gradient illustrations in the three sizes, large, medium, and small. A notifications bell, a celebratory confetti popper, a comment bubble, a lit light bulb, and a cloud. All use various gradients that include colors like orange, red, blue, purple, and green.

Sizes

Gradient illustrations come in the same sizes as the linear illustrations: small (48×48 px), medium (96×96 px), and large (160×160 px). For most use cases, the medium size works well across mobile, tablet, and desktop.

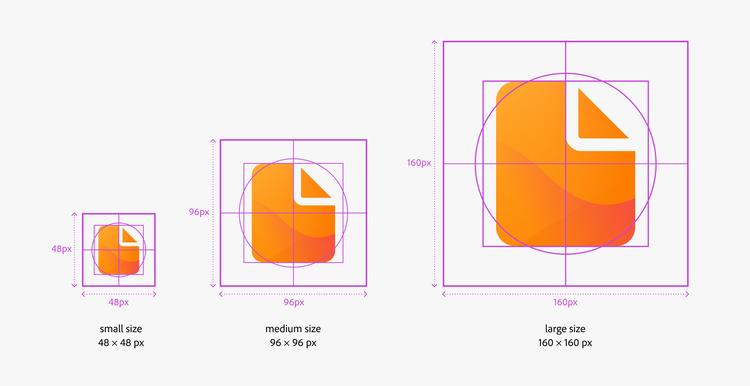

Diagram comparing the three different sizes of the gradient illustrations, small, medium, and large, and their pixel measurements.

Colors

The colors of the gradient illustrations use Spectrum’s 6.0.0 color system. They're tied to the different Adobe product categories and individual products.

There are two gradients that can be used for surfaces that show different products, or that are not product-specific. The other gradients are tied to specific products or clouds. For example, blue is tied to the photography and digital imaging category (such as Photoshop, Lightroom, and Fresco), while green represents the 3D category (such as Substance 3D Stager and Substance 3D Designer). It’s essential to use the appropriate illustration colors according to the product categories. If the application is for multiple products, use one of the gradient swatches that incorporate the Adobe brand red.

Do not use the category gradient sets as semantic colors to communicate meanings like errors (red), warnings (yellow), or successes (green).

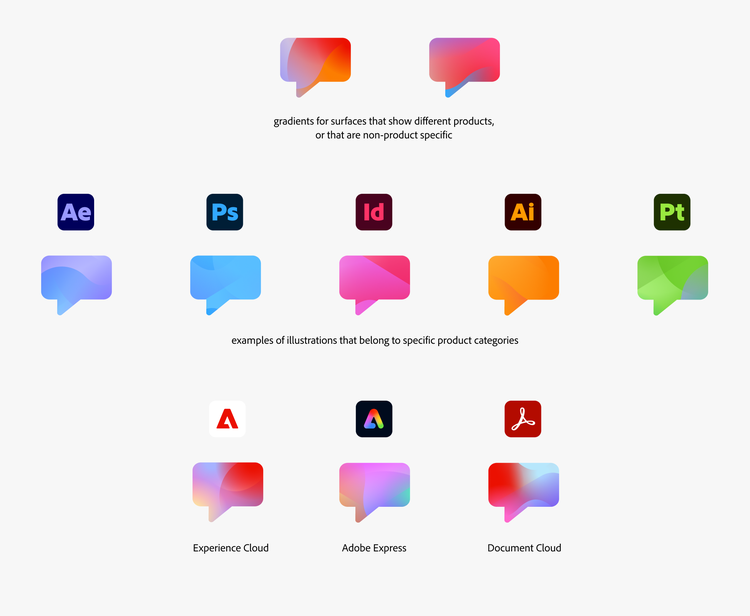

Colorful gradient speech bubble icons representing Adobe products, grouped by categories like Creative Cloud, Experience Cloud, and Document Cloud.

Naming convention

Gradient illustrations use the following naming convention:

  • Prefix identifies it as part of a larger group of assets: in this case S2 (Spectrum 2).
  • Type is the type of the asset: fill for gradient illustration.
  • Illustration name is in camel case, and there are no empty spaces or individual characters allowed.
  • Category differentiates the different gradient fill colors. The categories include: allproduct1, allproduct2, 3D, DC, drawing, DVA, express, EC, photo, and print.
  • Illustration size is stated in pixels at @1x.
  • Filetype suffix indicates the asset format, like SVG or PNG.

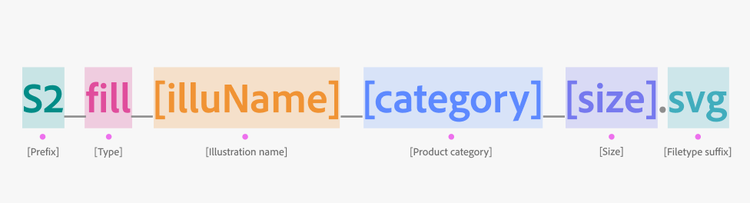

A breakdown of the correct gradient illustration naming convention: prefix, type, illustration name, product category, size, and filetype suffix.

Usage guidelines

Illustrations and attention hierarchy

The different styles of illustrations are connected to the Spectrum 2 concept of attention hierarchy.

Linear illustrations are elements that communicate lower attention, as they blend in well with the rest of the UI. They can be used multiple times in a layout without drawing too much attention.

Gradient illustrations are high attention elements that should be used sparingly and selectively. Only one illustration, element, or group of elements should have high attention on a page. Learn more about this with the Spectrum 2 attention hierarchy guidelines.

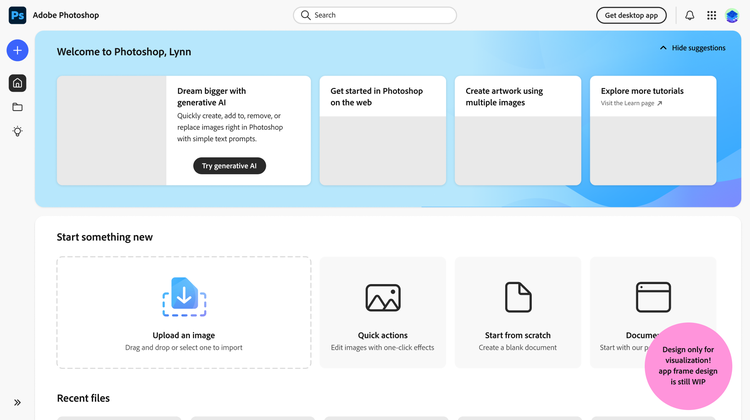

Photoshop welcome screen with options to upload an image, quick actions, start from scratch, and set document size.

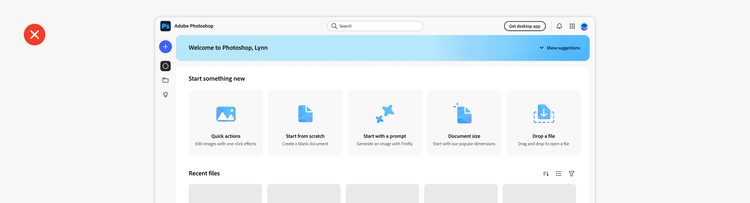

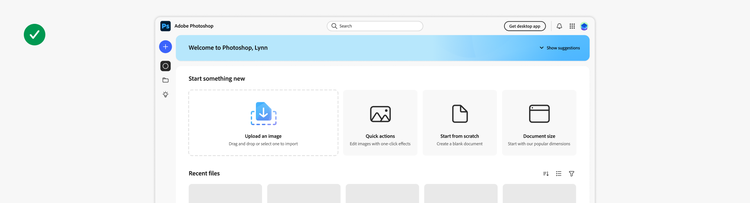

Photoshop welcome screen with options: Quick actions, Start from scratch, Start with a prompt, Document size, and Drop a file.

Use linear illustrations for errors or critical messages

Errors or critical messages should only use linear illustrations.

Gradient illustrations use colors that can be misunderstood as semantic colors (e.g., green for positive, red for negative). They also have an upbeat and inspirational tone, which isn’t appropriate in situations where a user may be frustrated by something that’s an inconvenience or is disruptive to them in accomplishing their work.

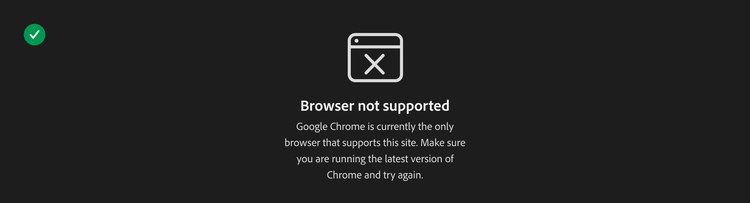

Example of the correct way to use a linear illustration. An error message alongside with a linear illustration to supplement the text. Example text, Browser not supported. Google Chrome is currently the only browser that supports this site. Make sure you are running the latest version of Chrome and try again.

Use linear style when showing several illustrations together

The linear illustration style works well for layouts that feature a number of illustrations together (such as a collection of cards). Linear illustrations draw a lower level of attention and blend in well with the UI, so it’s appropriate to use them in a collection of elements. Gradient illustrations draw a lot of attention in multiples, so they need to be used sparingly and sparsely.

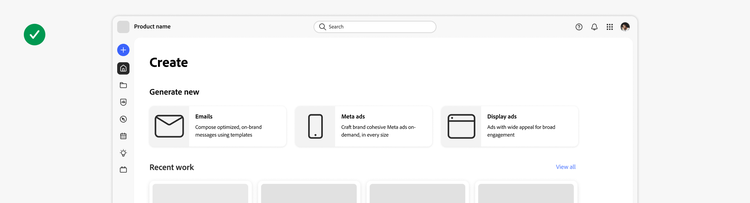

Example of the correct way to use several linear illustrations at once, one in each card, in a group of three cards.

Don’t resize illustrations

Don’t scale or resize linear illustrations. The stroke weight and the corner radii are already set to work best in the given canvas sizes.

Example of incorrect way of using linear illustrations. Sizes and scales are not using the pre-determined standards, and are too large, too small, or their outlines are too thick or too thin.

Don’t create your own linear illustrations

It’s essential to have consistency in tone and metaphors across all Adobe products. Don’t create your own linear illustrations or alter existing ones. If you need a new linear illustration, make a request using Workfront.

Examples of the correct and incorrect way to use linear illustrations, through an illustration of a camera. Correct way, using an existing illustration. Incorrect way, creating your own for the exact same metaphor.

Don’t recolor illustrations

Always use gray 800 for the illustration color. Using semantic colors (red, orange, green, blue) can help reinforce meaning, but should be considered on a case-by-case basis.

Example of the correct way to use color in linear illustrations. Semantic color of green is only used in an illustration of a checkmark, to reinforce the meaning of the “success” semantic.
Example of the incorrect way to use color in linear illustrations. A collection of 3 linear illustrations that all use various colors and gradients, when they should only be monotone.

Use gradient illustrations thoughtfully

Gradient illustrations are high attention elements in the layout. Use them strategically and thoughtfully to draw the user’s attention and to provoke a delightful moment.

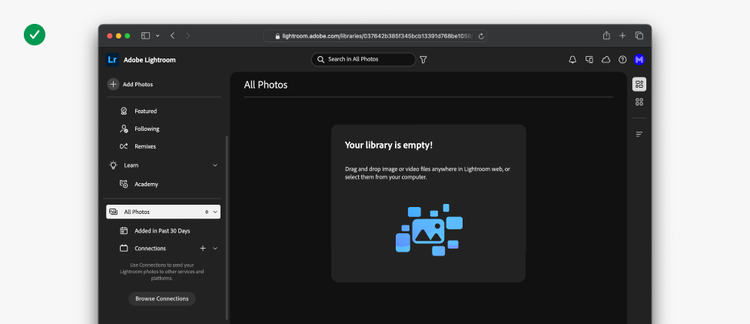

Adobe Lightroom interface showing an empty photo library with a prompt to drag and drop files. Sidebar menu and search bar visible.

Don’t show more than one gradient illustration at a time

Gradient illustrations draw more attention because they’re very colorful. Using more then one in a given view will make the UI too busy and too loud. Use gradient illustrations sparingly to guide a user’s attention to engaging, high-value actions such as uploads, starting projects, or commenting.

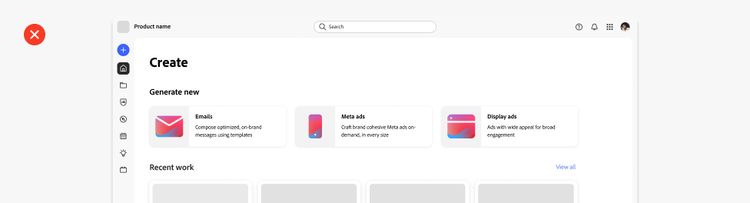

Example of the incorrect way to use gradient illustrations. Several gradient illustrations are being used at the same time, one in each card in a group of three cards.

Don’t use gradient illustrations for error or critical messages

Gradient illustrations incorporate product category colors, and also include colors that have semantic meanings in Spectrum: red, orange, or green. It creates inconsistency and confusion to have an error message or a critical alert in green (a color has a positive semantic meaning).

Use gradient illustrations when you want to emphasize positive actions. Gradient illustrations have an upbeat and inspirational tone, which isn’t appropriate in situations where a user may be frustrated by something that’s an inconvenience or is disruptive to them in accomplishing their work.

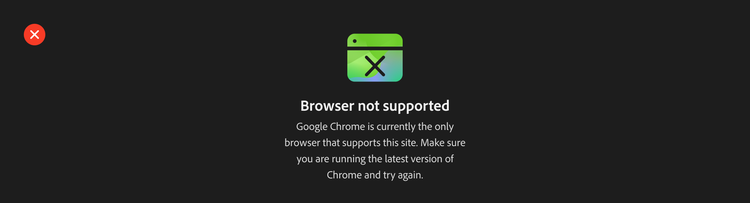

Example of an incorrect way to use a gradient illustration. An error message alongside with a gradient illustration to supplement the text. The illustration uses a green gradient, which doesn’t match what it’s communicating in the text. Text, Browser not supported. Google Chrome is currently the only browser that supports this site. Make sure you are running the latest version of Chrome and try again.

Don’t create your own gradient illustrations

It’s essential to have consistency in tone and metaphors across all Adobe products. Don’t create your own gradient illustrations or alter existing ones. If you need a new gradient illustration, make a request using Workfront.

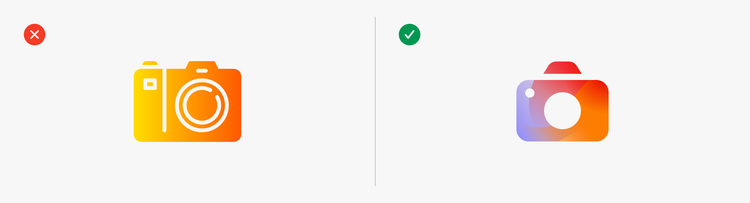

Examples of the correct and incorrect way to use gradient illustrations, through an illustration of a camera. Correct way, using an existing illustration with the correct gradient for the product. Incorrect way, creating your own gradient with incorrect colors for the product, as well as a different illustration style.

Use the correct colors for your product

The colors in gradient illustrations are connected to the product categories. For example, an illustration for a Substance 3D product should use the Substance 3D green colors.

Do not use different colors than those of your product category. Reach out to the Spectrum Brand team for guidance about the appropriate colors for your use case.

Two icons compared: a blue chat bubble marked incorrect with a red "X," and a green chat bubble marked correct with a green checkmark.

Test if gradient illustrations work well in your layout

It’s highly recommended to test gradient illustrations as you’re designing your layout. They’re very expressive and colorful, so it’s important to determine how they complement (or don’t) different communication points (e.g., user-generated content, onboarding, feature banners, upsells, and more).

If gradient illustrations are making the layout too noisy, use linear illustrations instead.

Thematic banners

Thematic banners are descriptive and represent a specific topic or feature. Similar to the gradient illustrations, they’re either connected to the product brand categories by color, or they use the generic gradient swatches.

These banners use the same shapes, metaphors, and elements as the linear illustrations, but they have a distinct style that is combined with the gradients and colors of the gradient illustrations. With their size, usage of color, and high editorial quality, thematic banners are high on the attention hierarchy scale. In layout, they work best when used to promote positive and high-impact moments, such as announcing new features. Because of this, they should be used sparingly.

Thematic banners are created on a case-by-case basis by the Spectrum Brand team. You can request thematic banners through this Workfront request form. There is no asset library for thematic banners because they have unique needs for each product use case.

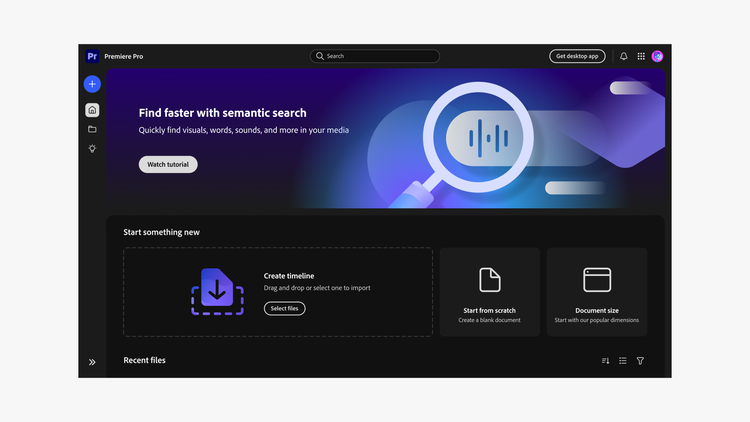

Premiere Pro UI with semantic search banner, "Start something new" options for timeline, blank document, and preset dimensions.

Resources and contact information

Before you work with these illustrations, please familiarize yourself with the usage guidelines here. You’ll especially need to understand the differences in how to use the linear and gradient illustrations.

For new or existing illustrations, please submit a request through this Workfront form. You can also reach out to the Spectrum Brand team with any questions on Slack in #product-branding or by email.

To view existing S2 Illustrations, visit the S2 / Illustrations library in Figma. The assests from this library are also available in A4U for production and engineering assets (VPN access required).
